Membrane injection system - for buildings with a basement

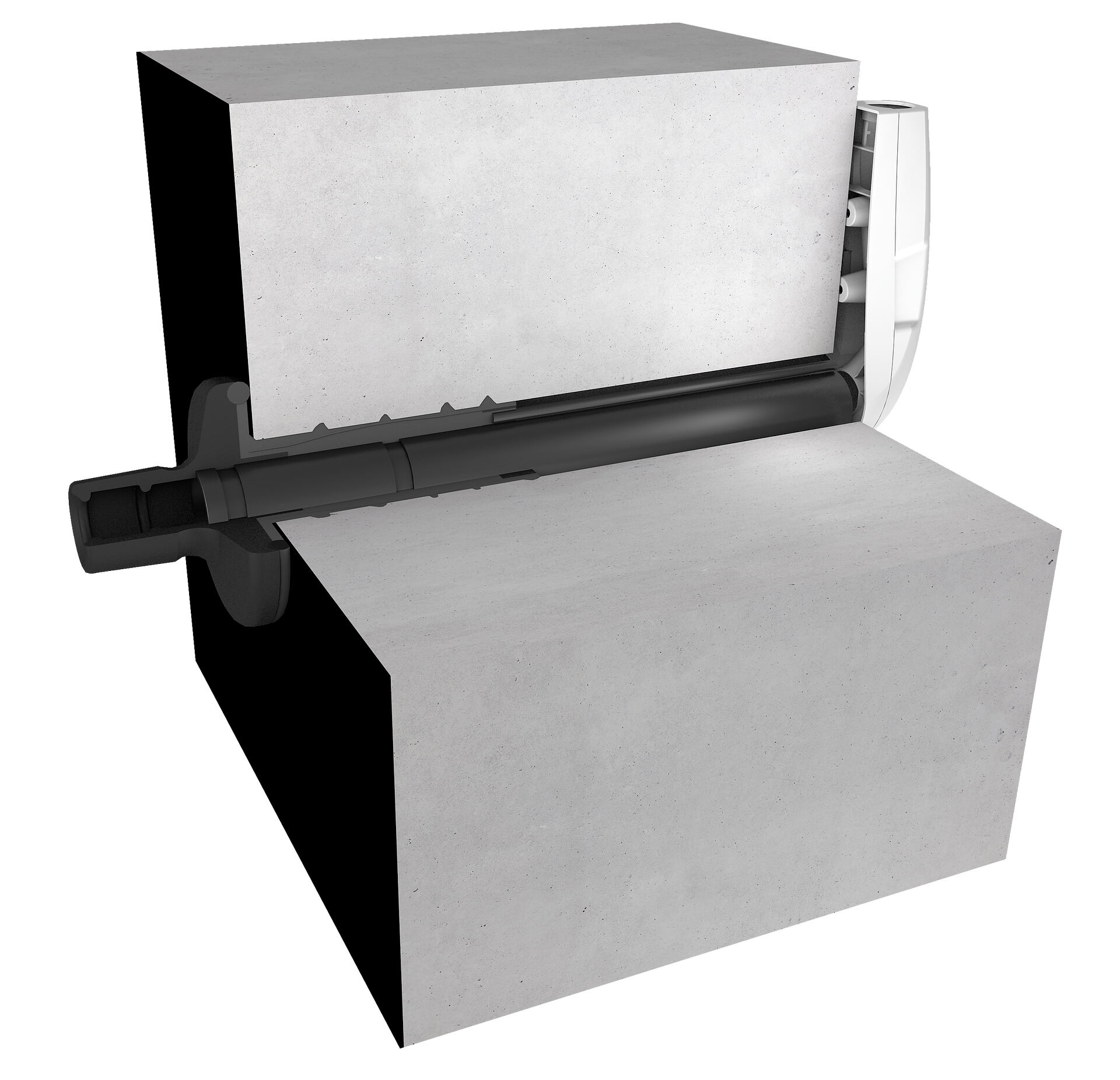

universal building entry with membrane injection system for drill holes in the most common types of wall
controlled ejection of resin through slit membrane hose
sealing lips ensure gentle seal for media lines

For existing buildings with a basement for reliable sealing of standard water lines.

Facts

Advantages:

Quick to assemble in just a few minutes
Not necessary to restore basement seal to DIN 18533
Variety of seal inserts for variable configuration

Scope of delivery:

1 packing unit:
10 pieces of MIS 60D including pre-mounted seal insert
10 pieces of wall terminator element (only for communication variant)
10 pieces of wall collar (only with electricity variant)
10 pieces 2-component resin Resinator, 150 ml
1 piece of quick tensioning device MIS60 SVS

Dimensions:

For core drills Ø: 62 - 65 mm
For wall thicknesses: from 200 to 1200 mm

Application range:

Water exposure class DIN 18533: W1-E and W2.1-E
Waterproof concrete stress class 1 and 2

Material:

Flange, seal insert, counter-bearing and adapter: EPDM
Sealing tape: butyl
Resin filler hose: PE
Wall collar: PE
Pipe: PVC-U
Wall terminator element: Flame-retardant polycarbonate
Fast arrangement fixture: glass fibre reinforced polyamide/ABS

Tightness:

gastight and watertight to 1.0 bar
radon tight
