Fibre-optic expansion

Fibre optic building entry

for buildings without a basement

GFH30 PRO

Add to wish listAdd to wish list
Fibre optic building entry - for buildings without a basement
USP
  • universal building entry with injection system for drill holes in the most common types of wall

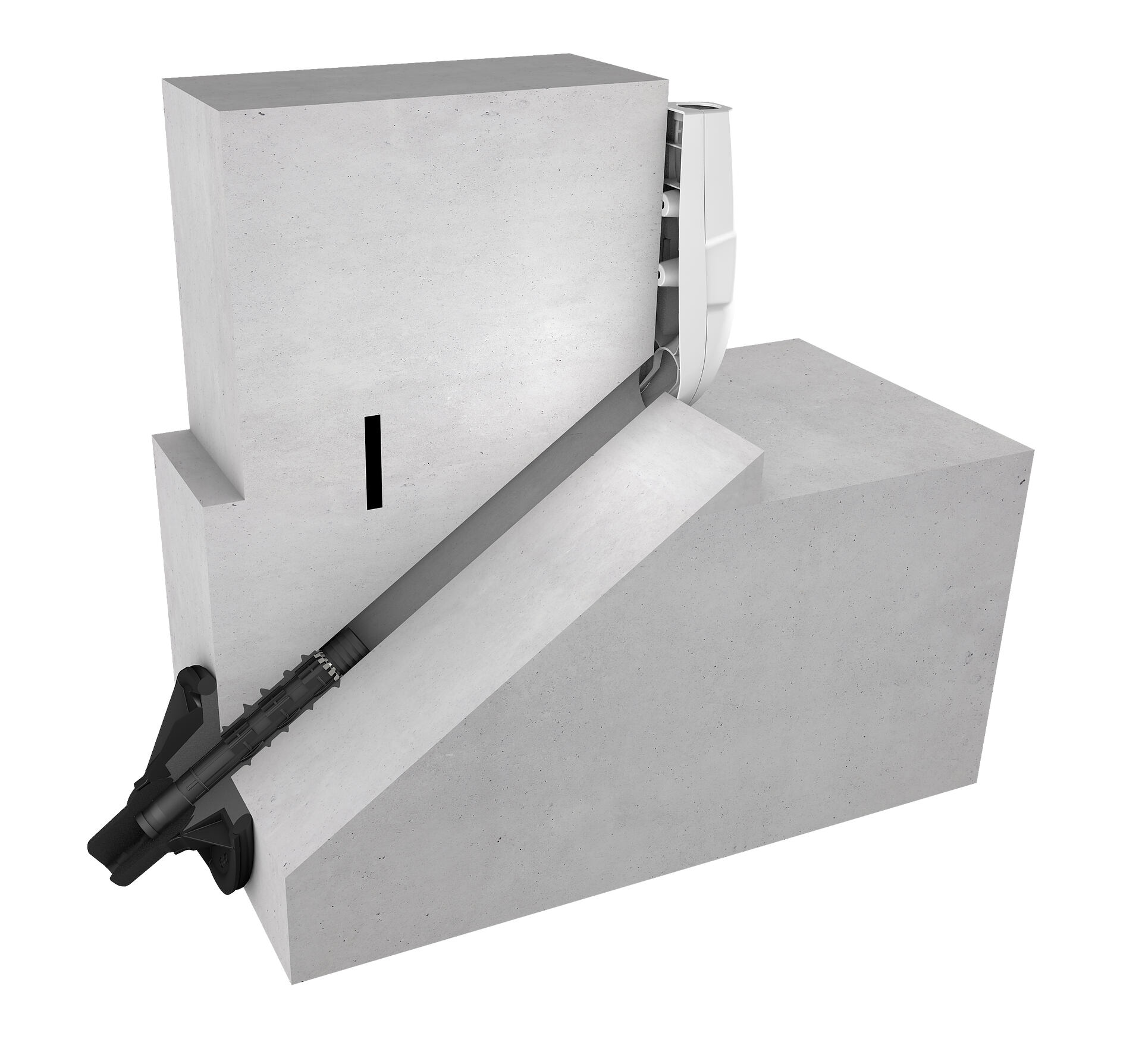

  • enables horizontal or oblique installation up to a 45° angle
  • low-impact sealing of fibre optic cables by means of sealing lips
For reliable sealing of fibre optic cables.
Fibre optic building entry - for buildings without a basement

Facts

Advantages:

  • Quick to assemble in just a few minutes
  • Not necessary to restore basement seal to DIN 18533

Scope of delivery:

  • 1 piece of GFH30
  • 1 piece of wall terminator element
  • 1 piece of 2-component resin RESINATOR, 80 ml
  • 1 piece of mixing nozzle

Dimensions:

  • Area of application: 2 fibre-optic cables with Øa 7-10 mm or 1 fibre-optic cable with Øa 6 - 13 mm or 1 fibre-optic cable with Øa 12 - 16 mm
  • for drill holes: ID 30 mm
  • For wall thicknesses starting from 200 mm

Application range:

  • Water exposure class DIN 18533: W1-E and W2.1-E
  • Waterproof concrete stress class 1 and 2

Material:

  • Flange and punching pin: ABS
  • Ball insert: EPDM
  • Sealing tape: butyl
  • Corrugated pipe: PE

Tightness:

  • gastight and watertight to 1.0 bar
Downloads

Brochures

Installation instructions

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

Number of cables/medium suitable for medium pipe OD (mm) Article code Article number GTIN
2 7 - 10 GFH30 2x7-10 PRO 3030535881 4052487244718
Download of data sheet and tender specification
title=
1 6 - 13 GFH30 1x6-13 PRO 3030535887 4052487244725
Download of data sheet and tender specification
title=
1 12-16 GFH30 1x12-16 PRO 3030535888 4052487244732
Download of data sheet and tender specification
title=


* Price on request
Product group 6: Membrane injection systems
